Bifold Doors Deep Bottom Rail - Product Details

With their slim squareline appearance, choice of standard or ultra low 15mm threshold, and option of a deep bottom rail, our new range of folding doors are a great addition to our Aluminium Bifolding Doors line up.

143mm Slim Sight Line
Square Line Profile

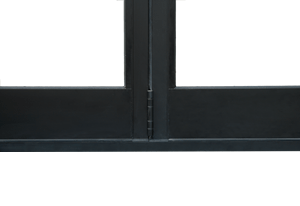

Deep Bottom Rail
Ultra Low 15mm Thermally Broken Threshold Option
Generous Size Limitations
Wide range of standard configurations available

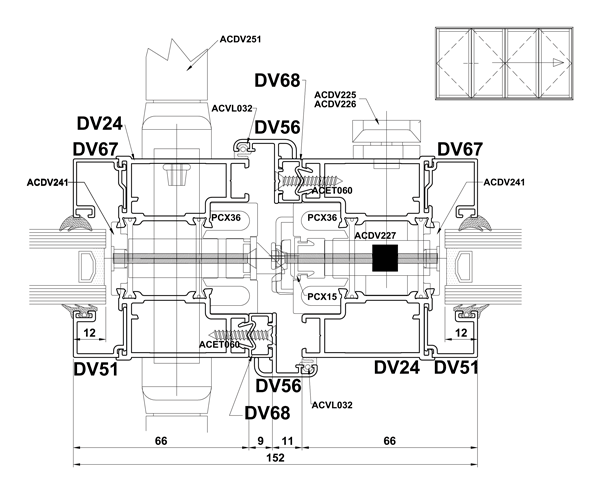

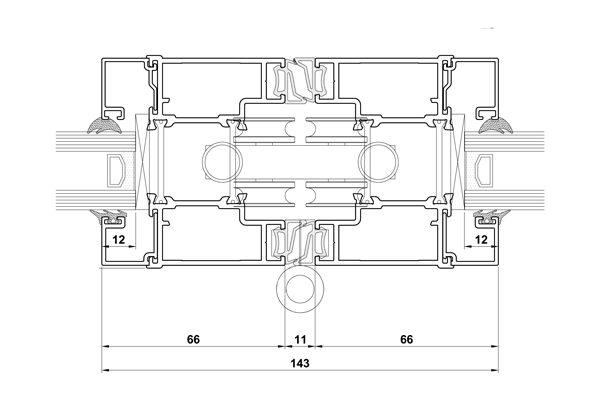

The following pictures and diagrams provide a more detailed view of these doors.

Vertical Cross Sections

Low Threshold with Standard Bottom Rail (No Cill)

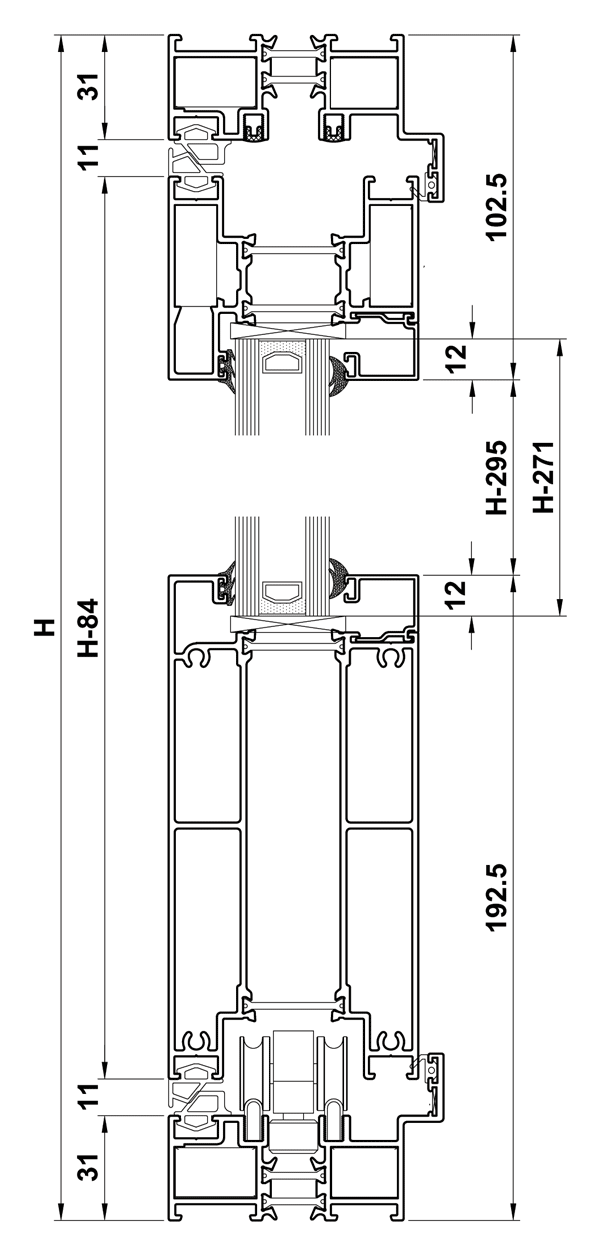

Standard Threshold with Deep Bottom Rail (No Cill)

All of the above have the option of putting a cill underneath. This would add another 25mm to the threshold height. The cill is available in various widths with 150mm being the most popular choice.

If you require a trickle vent then a 42mm add-on is placed on top of the head profile. This provides adequate space for any plasterline.
