Panorama Aluminium Folding Doors - Product Details
With its aesthetically pleasing rounded exterior profile, squareline interior bead, ultra low threshold option, and generous size limitiations, our Panorama Folding Doors are a popular choice.
- 154mm Slim Sight Line
- Featured ovolo apperance to exterior sash
- Square Line bead to interior
- Generous Size Limitations
- Ultra Low 15mm Thermally Broken Threshold Option
- Very flexible system, virtually any configuration available
Detailed below are various diagrams providing a more detailed view of this system.
Vertical Cross Sections

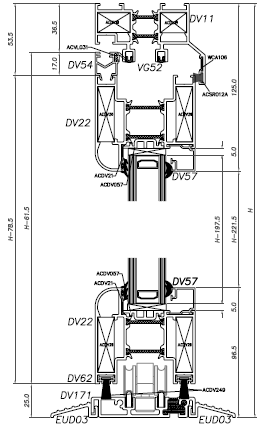

Vertical Section with Ultra Low Threshold (No Cill)

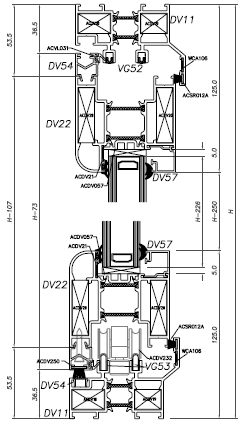

Vertical Section with Standard Threshold (No Cill)
Both of the above have the option of putting a cill underneath. This would add another 25mm to the threshold height. The cill is available in various widths with 150mm being the most popular choice.
Ultra Low Treshold with Cill

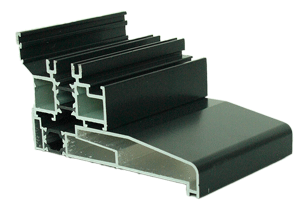

Standard Threshold with Cill
If you require a trickle vent then a 42mm add-on is placed on top of the head profile. This provides adequate space for any plasterline.
Horizontal Cross Sections

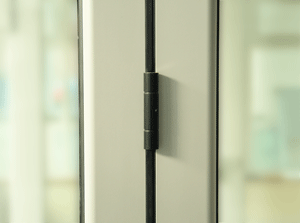

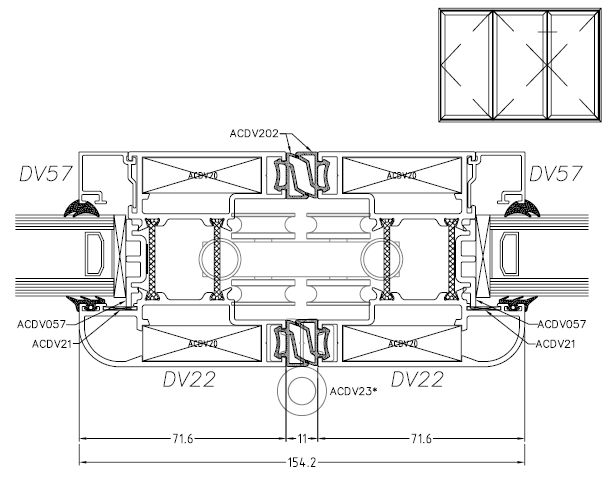

Cross Section through a Fold

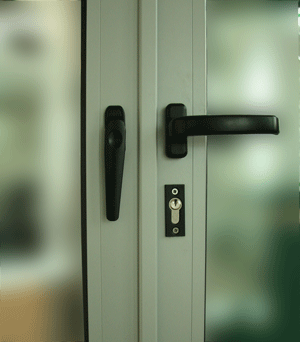

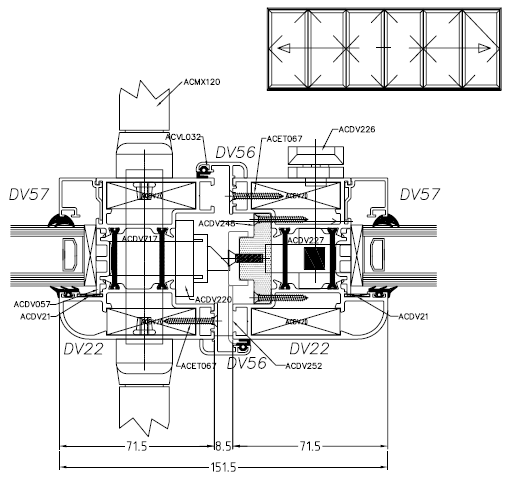

Cross Section through a French Door arrangement
This configuration occurs where there is a french door arrangement.
ie on styles 211, 431/413, 633, 651/615
Please note that the handle style may differ depending upon the chosen option.
Cross Section where an even number of sashes end on a roller
This configuration occurs where there is an even number of sashes on one side
ie on styles 220/202, 312/321, 422, 440/404, 532/523, 642/624, 752/725, 743/734.
