Slimline Aluminium Folding Doors - Product Details

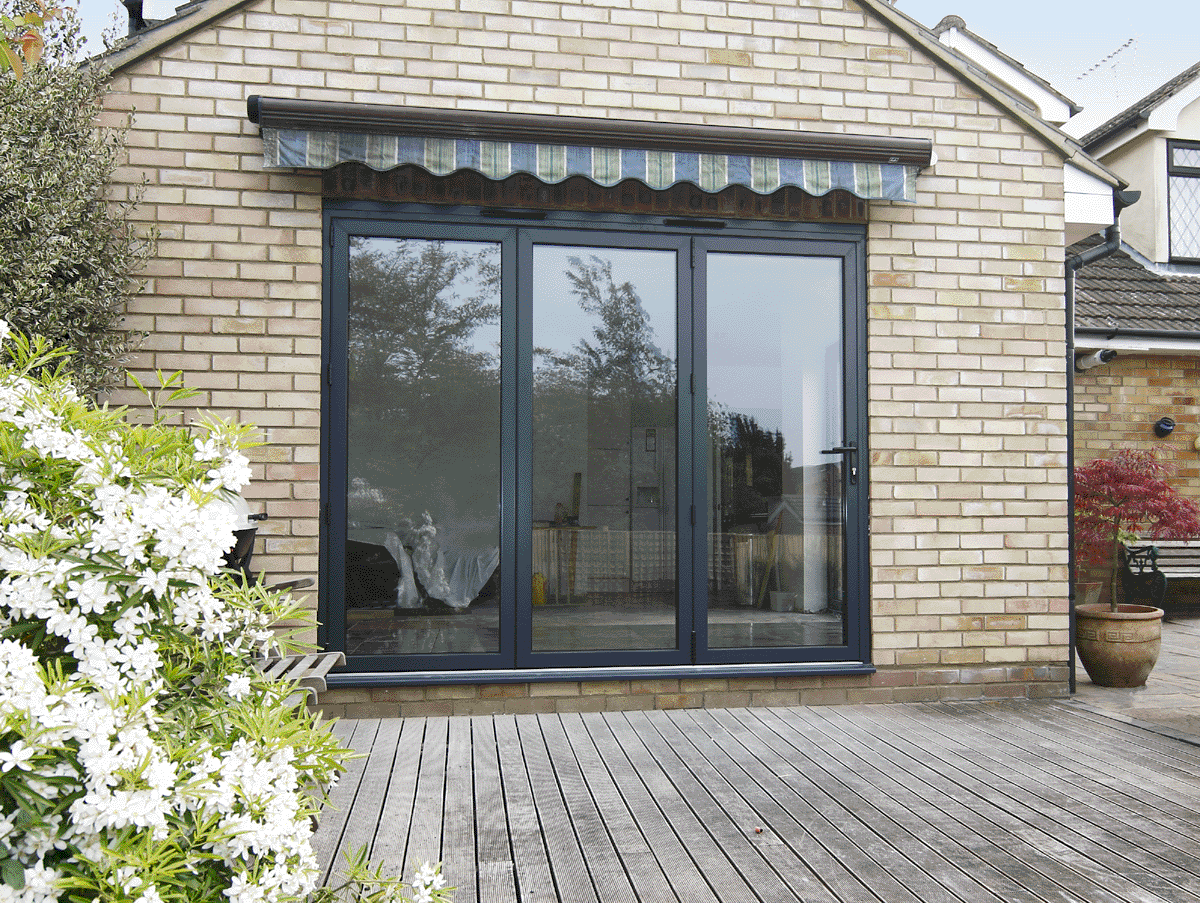

With their slim appearance, choice of square or ovolo sash, ultra low threshold option, our new range of Slimline Folding Doors are proving to be a very popular choice.

132mm Slim Sight Line

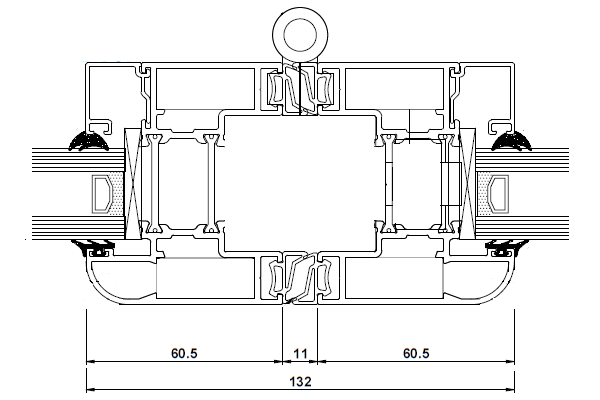

Choice of Ovolo or Square Line Sash Profile
Ultra Low 15mm Thermally Broken Threshold Option
Generous Size Limitations
Wide range of standard configurations available

Detailed below are various diagrams providing a more detailed view of this system.

Vertical Cross Sections

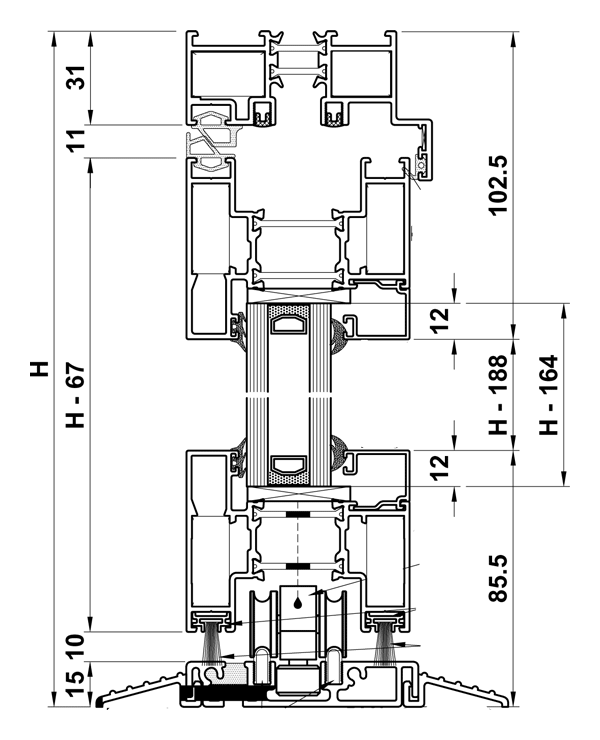

Low Threshold with Standard Bottom Rail (No Cill)

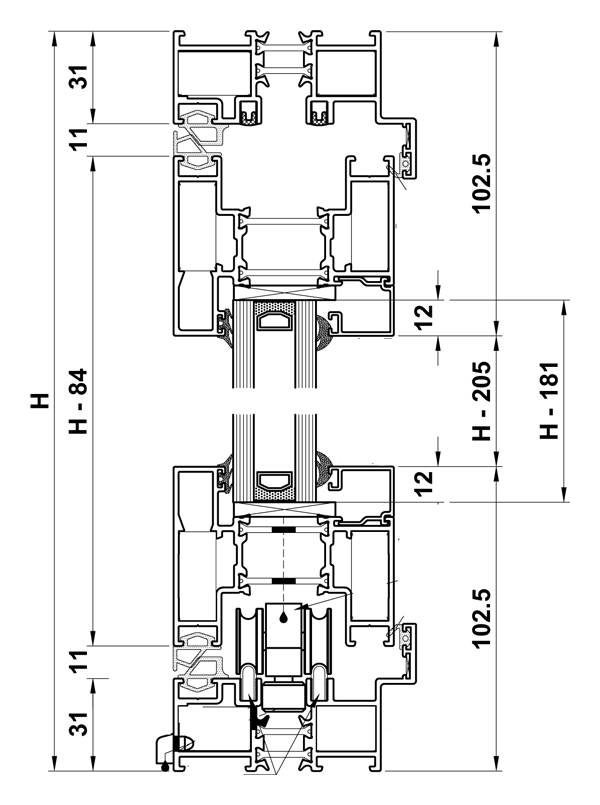

Standard Threshold with Deep Bottom Rail (No Cill)

Both of the scenarios above have the option of putting a cill underneath. This would add another 25mm to the threshold height. The cill is available in various widths with 150mm being the most popular choice.

If you require a trickle vent then a 42mm add-on is placed on top of the head profile. This provides adequate space for any plasterline.
